Windshield Insulation Film Installation

NanoX Windshield Insulation Film provides excellent heat rejection, glare reduction, and high transparency, ensuring a clear view at all times.

NanoX Windshield Insulation Film Pricing

Price range: 1,700,000 – 3,500,000 VND

Texting

Call now

NanoX Windshield Insulation Film Specifications

Should You Apply Insulation Film for Windshield?

Car insulation film (or auto insulation film) is currently considered the best solution for sun protection, heat insulation, and glare reduction on the windshield. This is because the windshield (also known as the front glass) absorbs the most solar heat on a car. It is the primary reason that causes the car to heat up, leading to discomfort and fatigue.

In a car’s glass system, the windshield has the largest surface area, covering almost the entire front of the vehicle. Unlike side or rear windows, the windshield is installed at a steep angle. The main reasons for this are to reduce air resistance, minimize nighttime driving glare, and enhance aesthetics. Moreover, to ensure visibility, the windshield cannot use dark-tinted glass like side and rear windows. Therefore, the windshield endures extreme solar heat.

Drivers sit right behind the windshield, in very close proximity. When driving on sunny days, the heat from the sun directly affects the driver, causing discomfort, stuffiness, and fatigue, even when the air conditioner is turned on. Many studies indicate that high temperatures can reduce concentration while driving, slow reaction times, and impair the ability to handle unexpected situations.

Most importantly, sunlight causes glare, which not only strains the eyes but can also seriously obstruct visibility, making driving extremely dangerous. In addition, sunlight carries harmful ultraviolet (UV) radiation. UV rays easily penetrate the windshield, damaging the eyes and skin, accelerating aging, and even posing a risk of skin cancer.

For other glass areas like side and rear windows, users can use sunshades for protection. However, sunshades cannot be used on the windshield while driving.

Benefits of Applying NanoX Windshield Insulation Film

Heat Reduction – Cooling Effect

NanoX windshield insulation film blocks up to 70% of heat penetration through the glass. This helps maintain a stable interior temperature and minimizes the impact of external heat. Combined with air conditioning, it keeps the driving cabin cooler.

Glare Reduction – Clear Visibility

NanoX car windshield insulation film reduces glare from sunlight during the day and oncoming headlights at night. Its transparency and light transmission are optimized to ensure a clear view at all times.

UV & Infrared Ray Protection

With an advanced filtering system, NanoX windshield insulation film blocks up to 99% of UV rays and 100% of infrared rays (IR), creating a protective barrier for health, eye safety, and especially skin protection.

Fuel Efficiency

NanoX windshield insulation film helps stabilize the temperature inside the car, preventing external heat from affecting the interior. This reduces the workload on the air conditioning system, thereby minimizing fuel consumption.

Comfort & Safety

A cooler and more comfortable environment not only provides a pleasant driving experience but also helps the driver stay focused, react quickly, and handle unexpected situations more effectively.

However, applying insulation film only on the windshield will not provide complete sun and heat protection for the car. Besides the windshield, the vehicle also has side windows and a rear window. Heat and sunlight can still penetrate through these glass areas. Therefore, for optimal protection, it is best to apply insulation film to the entire car (a full package for all windows).

Dual Nano Ceramic X-Shield Technology

NanoX offers various insulation films for windshields, all of which are manufactured using Nano Ceramic X-Shield technology.

A key feature of Nano Ceramic X-Shield technology from NanoX is the use of inorganic ceramic nanoparticles (Inorganic Ceramic) with an ultra-fine size of only 28 nm on PET layers. This ensures a tightly bonded ceramic structure that is highly durable and provides superior heat resistance.

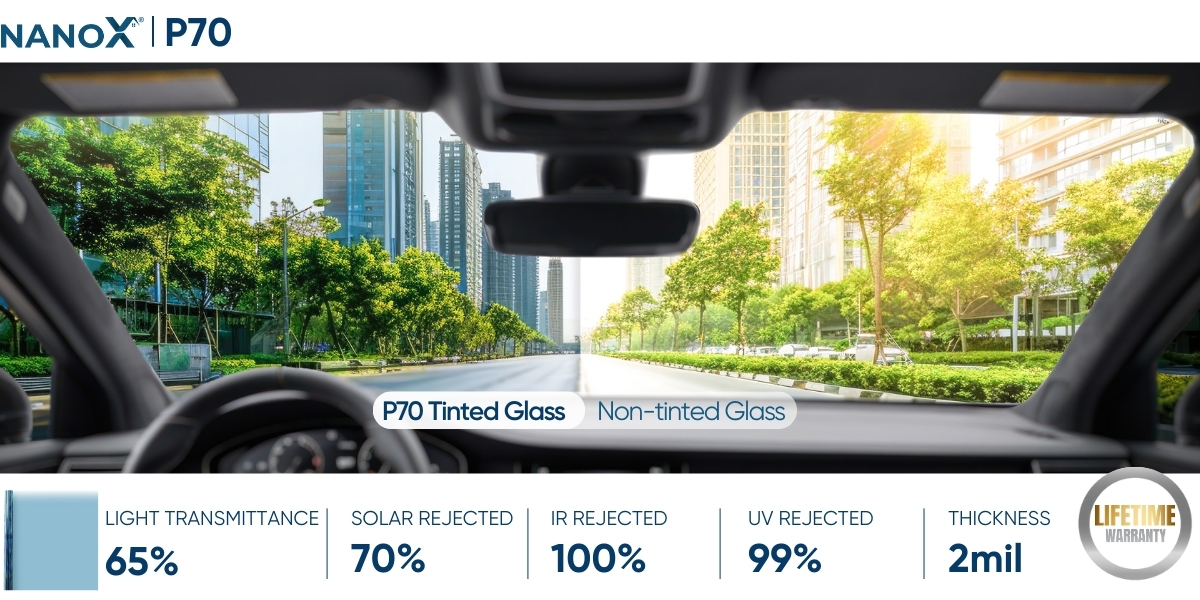

For Premium P70, the highest-grade windshield insulation film from NanoX, it incorporates Dual Nano Ceramic X-Shield technology along with a high-end hard coating. This results in a multi-layer ceramic coating, significantly enhancing heat insulation while maintaining clarity, transparency, and high light transmission.

How to Choose and Important Considerations for Windshield Insulation Film

Key Factors to Consider When Selecting Windshield Insulation Film:

Choose a film with high light transmission: The brightness of the windshield is crucial as it directly affects visibility. Insulation films for windshields should have a high light transmission rate to ensure clear vision during both day and night. The film should provide comfort but should not be too dark.

• Match film brightness to driving conditions: If you drive mostly during the day, you can opt for a darker shade. If you drive mostly at night, a brighter shade is recommended for better visibility.
• Prioritize films that block 100% of infrared rays: More than 50% of the heat in sunlight comes from infrared rays, and over 40% comes from visible light. Since windshields require high light transmission, it is best to select films that block 100% of infrared rays to effectively reduce heat.
• Choose a suitable film color: Windshield insulation films come in different shades, such as blue tint, green tint, and smoke gray. Choose a color that suits your preference and needs.
• Avoid films with high reflectivity: Windshield films with high reflection can create glare and mirror-like effects that mix with the real road view, especially at night. Choose a film with low reflectivity to maintain clear visibility.
• Avoid films that interfere with signals: Metal-based films can block or disrupt signals for phones, GPS, and other electronics. Use ceramic-based films to avoid signal interference.

NanoX windshield insulation films are specifically designed to meet windshield standards. They provide excellent heat insulation, high clarity, low reflectivity, and do not interfere with signals.

Notably, NanoX Premium P70 can completely block 100% of infrared rays and 99% of UV rays for superior protection.

Windshield Insulation Film Installation Process

Applying insulation film to the windshield is the most complex among all car windows. The process includes two main steps: heat shrinking and installation.

Since the windshield is curved, the film must be pre-shrunk using a heat gun to match the curvature before application. This requires skilled professionals with both technical expertise and experience.

After heat shrinking, the film is applied to the inside surface of the windshield. Proper installation is crucial, ensuring the film adheres smoothly without bubbles, dust, or wrinkles for the best visibility. The film must adhere closely to the glass surface, without wrinkles, water bubbles, or dust, to ensure the best visibility for the driver. The installation process includes the following steps:

NanoX Professional Windshield Insulation Services

NanoX proudly offers professional windshield insulation film application services. Customers can access NanoX products and services by:

• Booking an installation appointment at NanoX showrooms.
• Requesting at-home insulation film installation.
• Visiting over 80 authorized dealers nationwide.

Actual image of heat insulation film baking at NanoX

Frequently Asked Questions About Windshield Insulation Film

How much does windshield insulation film cost?

Prices range from 1,700,000 – 3,500,000 VND.

Should I apply insulation film to my windshield?

Yes! The windshield endures the most heat, so insulation film improves cabin comfort, reduces glare, blocks harmful rays, and saves fuel.

Is windshield insulation film applied inside or outside?

Inside the car for durability and effectiveness.

Where should I get insulation film applied?

Choose trusted providers with genuine products and skilled technicians.

Why does my windshield insulation film look foggy?

Likely due to low-quality film or aging over time.
